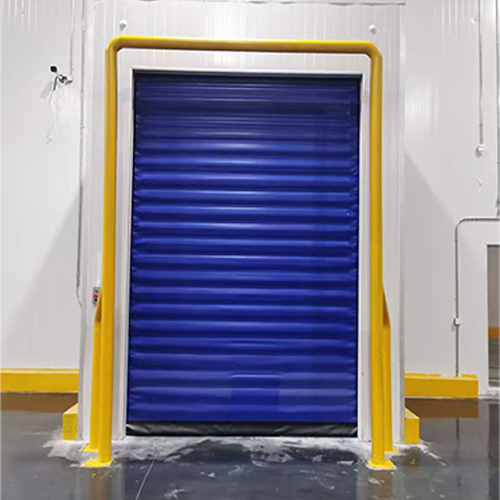

Automated High Speed Cold Storage Door With 304 Stainless Steel Enclosure Frame For Automated High-bay Cold Storage Warehouse
The Automated Cold Storage Door is specifically designed for high-density automated freezer warehouses, where precise temperature control and seamless operation with automated handling equipment are critical.
Installed in robotic picking zones and automated freezer aisles, this door enables rapid access while maintaining stable cold storage conditions, ensuring smooth operation of warehouse automation.
The automated warehouse freezer door combines high-speed operation, airtight sealing, and durable construction to support smart cold storage logistics and protect temperature-sensitive products.
Product Specifications
| Parameter |
Description |
| Maximum Available Size |
Door width: 1000–4000 mm
Door height: 1500–4000 mm |
| Dual-Side Track Heating System |
Heating wires are installed inside both side tracks to ensure continuous and stable operation of the door curtain in low-temperature environments. |
| Operating Speed |
Opening speed: 0.6–1.2 m/s (adjustable)
Closing speed: 0.6 m/s (adjustable) |
| Door Curtain Material |
The door curtain features a 3+2 composite structure, with thickened insulated curtains on both inner and outer layers and an aluminum foil insulation core.
Total curtain thickness: 18–22 mm. |
| Frame Material |
Tracks made of aluminum alloy, thickness 2.0 mm
Enclosure frame made of 304 stainless steel |
| Sealing Performance |
The tracks adopt a nylon + PVC wind-resistant curtain system, combined with an airtight bottom sealing structure, ensuring excellent sealing performance. |
| Wind Resistance |
Maximum wind resistance Grade 6, upgradable to Grade 8. |
| Manual Operation |
In the event of power failure or system malfunction, the door can be opened manually using a standard wrench. |
| Power Requirements |
220 V / 13 A, single-phase, 50/60 Hz
IP54-rated control box, compliant with national electrical safety standards. |
| Insulation Protection |
IP54 protection ensures dustproof and waterproof performance even in harsh environments. |
Key Features of Automated Cold Storage Door
-
Fast and Precise Operation
Ensures minimal temperature fluctuation during automated workflows.
-
Automation Friendly Design
Works seamlessly with conveyors, robotic systems, and smart warehouse controls.
-
High Sealing Performance
Maintains stable temperatures and prevents frost formation.
-
Durable for Continuous Operation
Built to handle frequent automated movements without performance degradation.
-
Flexible Control Options
Supports radar sensors, pull cords, ground loops, and remote commands.
Advantages for Automated Cold Storage
-
Supports High-Density Storage Operations
Enables efficient automated retrieval and storage of frozen goods.
-
Maintains Product Temperature
Protects perishable items in automated cold storage environments.
-
Energy Efficient
Fast operation and high sealing minimize refrigeration load.
-
Reliable and Safe
Equipped with emergency manual operation and safety sensors.
-
Enhances Automation Efficiency
Synchronizes with warehouse management systems for smooth workflow.
Typical Applications
-
Automated freezer warehouses
-
Robotic freezer storage aisles
-
Smart cold storage facilities
-
Industrial automated temperature-controlled storage
Detailed Feature: Integration with Automated Equipment
The automated cold storage door is engineered to work seamlessly with automated warehouse equipment.
Precise door control and fast cycles allow conveyors and robotic systems to operate efficiently without waiting, while high sealing prevents cold air loss.
This ensures consistent product temperatures, reduces energy consumption, and supports intelligent warehouse operation.
Installation Instructions
All measurements are made indoors and each value must be measured at at least three points:
H--the height of the doorway (the distance from the ground to the top of the doorway)
B--the width of the door opening (the distance from the left edge of the door opening to the right edge)
h--Above the doorway (the distance from the top of the doorway to the ceiling) is generally reserved 600mm
b1/b2--The lateral distance of at least 200mm (the distance from the corresponding edge of the door opening to the obstacle) is required to have 500mm reserved on the side of the motor:
When measuring H and B, take the maximum value as the final dimension
When measuring h b1 b2, take the smallest value as the final size
FAQ
Q1: Is this door suitable for automated freezer warehouses?
Yes, it is specifically designed for high-density automated cold storage facilities.
Q2: Can it maintain stable temperatures during frequent automated cycles?
Yes, high-speed operation and airtight sealing ensure temperature stability.
Q3: Is it suitable for 24/7 automated operation?
Absolutely, it is built for continuous, high-frequency usage.
Q4: Is emergency manual operation available?
Yes, manual opening is included for power outages or system failures.
